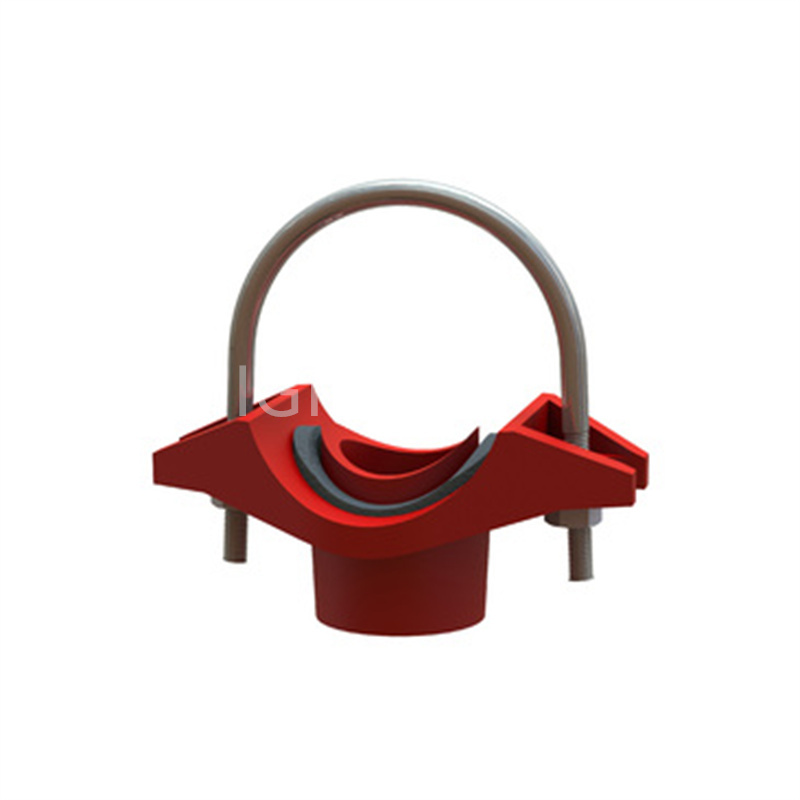

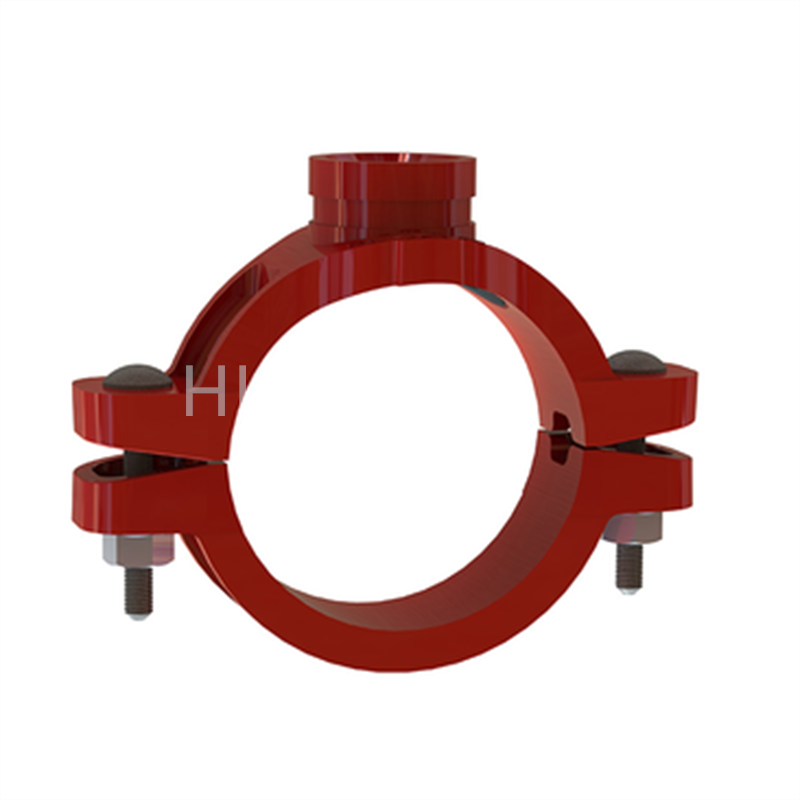

Mechanical tee is a kind of pipe fitting used for pipeline connection.It is mainly composed of tee main body, coupling and other components. Its design is usually relatively compact and can realize the connection of branch pipelines without affecting the original direction of the pipeline.
Connection Method
The main pipeline and branch pipeline are connected together by mechanical means. Generally, a hole is opened on the main pipeline, then the mechanical tee is installed at the opening, and then fastened with a coupling. The operation is relatively simple.
Application Scenarios
It is widely used in pipeline systems such as fire protection and water supply and drainage. For example, in the installation of fire protection pipelines in buildings, when branch pipelines need to be led out from the main pipeline to connect fire protection equipment in different areas, mechanical tees can play an important role.
Advantages
1. Quick installation: Compared with traditional connection methods such as welding, the installation speed of mechanical tees is faster, which can save construction time.
2. High flexibility: It can be installed at different positions according to actual needs and adapt to various complex pipeline layouts.
3. Good sealing performance: Through reasonable design and the fastening effect of couplings, the sealing performance of the connection part can be ensured and leakage can be prevented.
